SPECIFICATIONS
|
| Motion System |
Multi-Aticulated, Polar Coordinate System |
| |
| Load Capacity |
140 kg (including end effector weight) |
| |

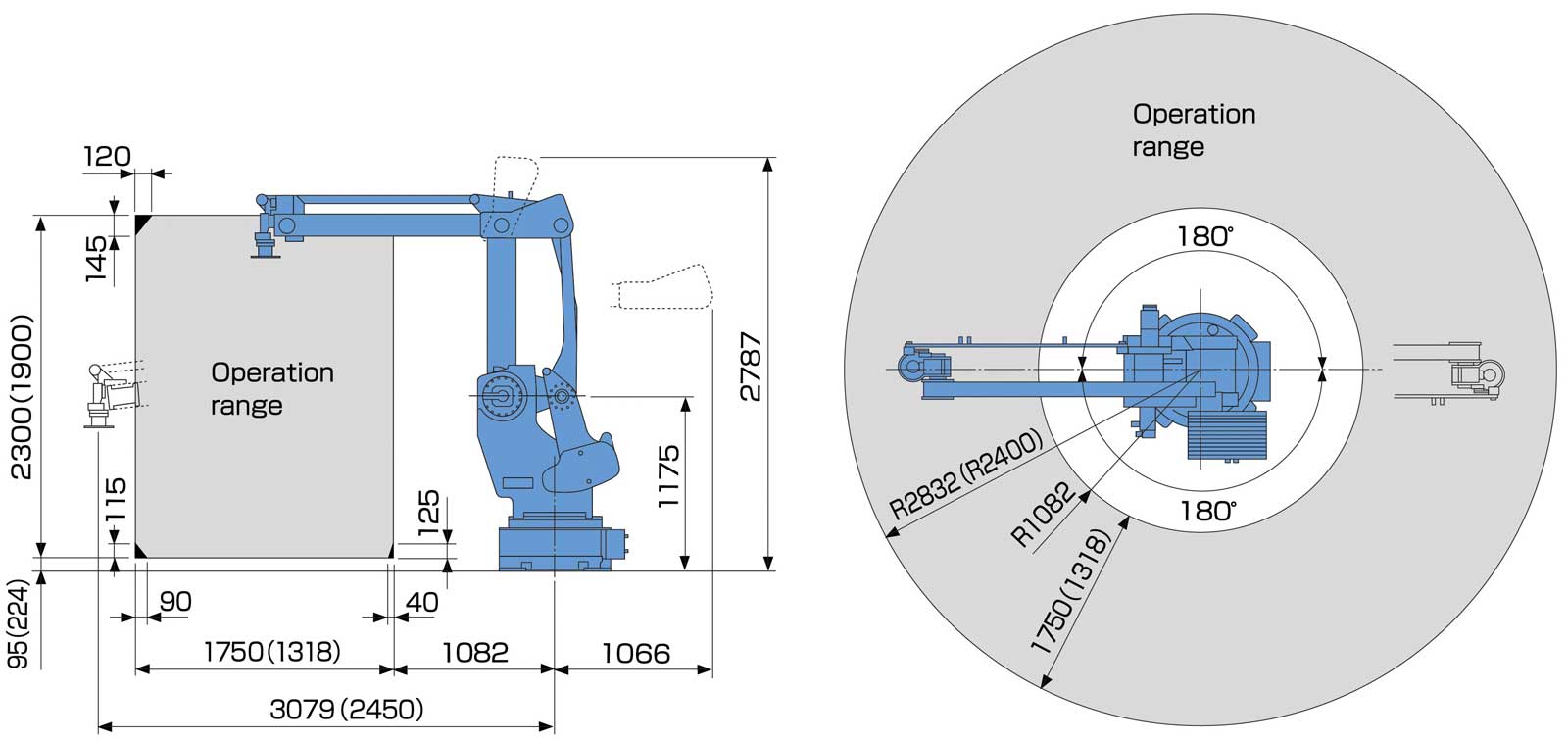

| Degree of Operation Range |
4 axes (R, D, O, T axes)
R axis 360º D axis 2300mm
O axis 1750mm T axis 440º |
| |
| Handling Rate |
Case - 550 cases/hour MAX
Bag - 700 bags/hour MAX
*Above is maximum capacity when a single gripping end effector is used. Stacking capacity varies depending on layout, multiple gripping & other conditions.
|
| |
| Accuracy |
Repeated stop position accuracy of ± 1mm |
| |
| Robot Weight |
1250 kg (without end effector) |
| |
| Pneumatic Consumption |
180 l/min (ANR)
*When a pallet dispenser is included, pneumatic consumption is 300 l/min (ANR)
|
| |
| Ambient Temperature |
0 - 40ºC |
| |
| Relative Humidity |
35 - 85% |
| |
| Power |
AC200V (Triple-phase) ± 5%
2.5kVA
|
| |
| Standard Colour |
Nittoko S11-344 |
| |
